Lifting your Toyota RAV4 correctly is essential for safe maintenance tasks such as changing a tire, rotating tires, replacing brake pads, or inspecting the suspension. Using the correct Toyota RAV4 jack points helps protect the vehicle’s frame while keeping you safe during the lifting process.
Many RAV4 owners accidentally place a floor jack or jack stand under the wrong location, which can bend the pinch weld, damage the underbody, or even cause the vehicle to slip. Knowing exactly where the front and rear jack points are located can prevent costly repairs and make DIY maintenance much safer.
In this guide, you’ll learn the correct Toyota RAV4 jack points for different model years, where to place jack stands, how to safely lift the vehicle step by step, common mistakes to avoid, and important safety tips recommended before working underneath your RAV4.

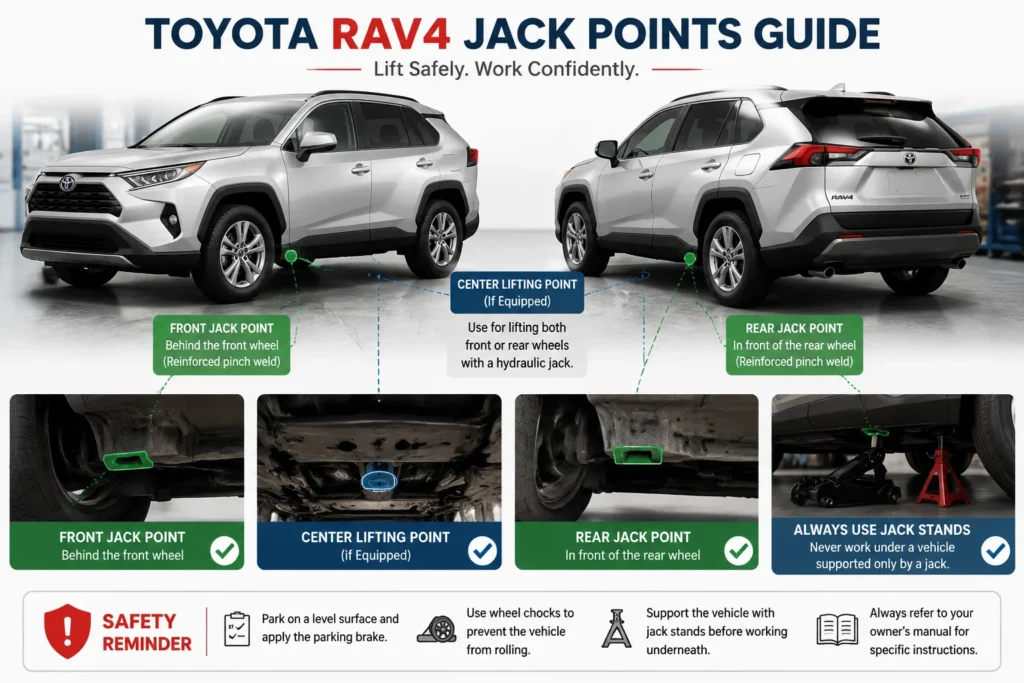

What Are Toyota RAV4 Jack Points?
Toyota RAV4 jack points are reinforced lifting locations designed to safely support the vehicle’s weight when using a floor jack, scissor jack, or jack stands. These points are much stronger than the surrounding body panels and help prevent damage during maintenance.
Most Toyota RAV4 models have designated jack points near the front and rear pinch welds, while central lifting points are available for raising the entire front or rear of the vehicle with a hydraulic floor jack. Always refer to your owner’s manual to confirm the correct lifting locations for your specific model year.
Using the wrong lifting point can bend the pinch weld, damage the suspension, or harm the underbody components. For this reason, you should never place a jack under the engine oil pan, exhaust system, fuel tank, or plastic underbody covers.
Safety Tip: Before lifting your Toyota RAV4, park on a level surface, engage the parking brake, switch off the engine, and use wheel chocks to prevent the vehicle from rolling.
Where Are the Front Jack Points?
The front jack points on most Toyota RAV4 models are located behind the front wheels along the reinforced pinch welds. These factory-designated lifting points are marked with small notches and are designed to safely support the vehicle when using the emergency scissor jack supplied by Toyota.
If you are using a hydraulic floor jack, many RAV4 models also have a central front lifting point located on the front crossmember or front suspension subframe. This allows you to raise both front wheels at the same time before placing jack stands under the side jack points. Always ensure the jack is centered and securely positioned before lifting the vehicle.
Avoid placing the jack under the engine oil pan, plastic splash shield, steering components, or other underbody parts that are not designed to support the vehicle’s weight. Lifting from the wrong location can cause expensive damage and create a serious safety hazard.
Quick Tips
- Use the reinforced pinch welds for the factory scissor jack.
- Use the front center jack point only with a properly rated hydraulic floor jack.
- Raise the vehicle slowly and check that the jack remains stable.
- Place jack stands under the recommended support points before working underneath the vehicle.
Where Are the Rear Jack Points?
The rear jack points on the Toyota RAV4 are typically located in front of the rear wheels along the reinforced pinch welds. Like the front lifting points, these locations are specifically designed to support the vehicle’s weight when using the factory scissor jack or properly positioned jack stands.
Many Toyota RAV4 models also have a designated rear center lifting point that can be used with a hydraulic floor jack. Because the exact location varies by model year and drivetrain, always refer to your owner’s manual before lifting the rear of the vehicle. Using this center lifting point with a hydraulic floor jack allows both rear wheels to be raised at the same time. Always verify the correct lifting location in your owner’s manual before attempting to lift the rear of the vehicle.
Never place a jack under the spare tire well, rear suspension arms, exhaust components, or plastic underbody panels unless the owner’s manual specifically identifies them as approved lifting points. Using an incorrect lifting location can damage the vehicle and increase the risk of an accident.
Important Reminder
- Inspect the jack and jack stands before every use.
- Lift the vehicle on a flat, solid surface.
- Support the vehicle with jack stands before working underneath it.
- Never rely on a hydraulic jack alone to hold the vehicle.

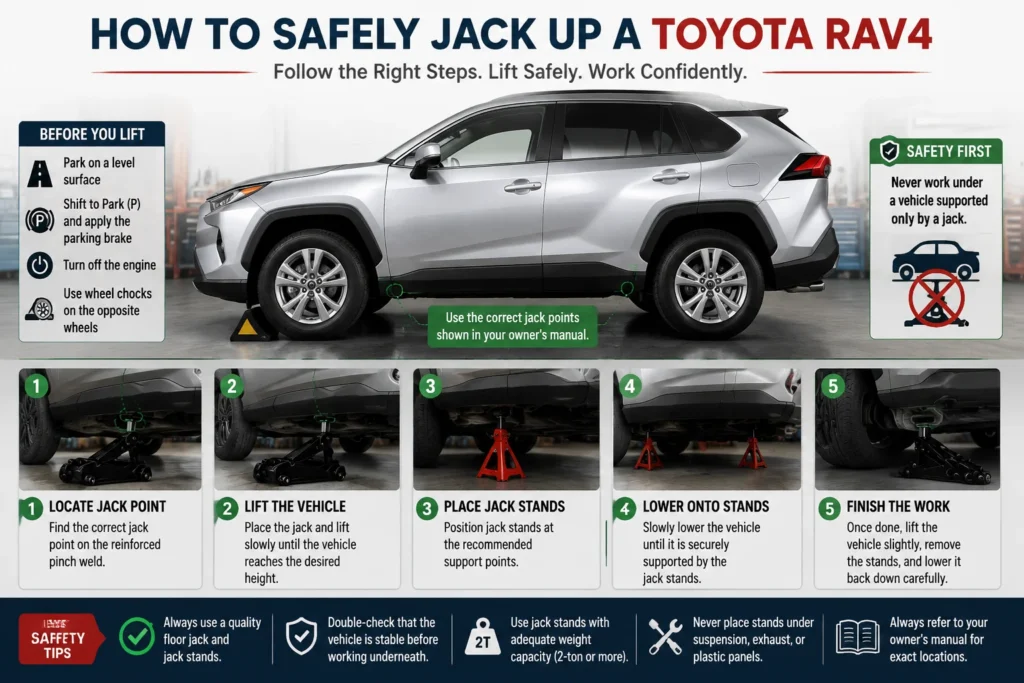

How to Safely Jack Up a Toyota RAV4
Before lifting your Toyota RAV4, take a few minutes to prepare the vehicle and your work area. Following the correct procedure helps prevent damage to the vehicle and reduces the risk of accidents during maintenance.
| Safety Checklist | Why It Matters |
|---|---|
| Park on a level, solid surface | Keeps the vehicle stable while lifting. |
| Shift to Park (P) and apply the parking brake | Prevents the RAV4 from moving unexpectedly. |
| Place wheel chocks on the opposite wheels | Reduces the risk of the vehicle rolling. |
| Position the jack at the correct Toyota RAV4 jack point | Protects the underbody and ensures safe lifting. |
| Raise the vehicle slowly and check stability | Helps prevent the jack from slipping or tilting. |
| Support the vehicle with properly rated jack stands | Provides a secure working platform before maintenance. |
| Never work under a vehicle supported only by a jack | Reduces the risk of serious injury if the jack fails. |
| Lower the vehicle slowly after completing the work | Prevents sudden movement and protects the suspension. |
Once your Toyota RAV4 is securely supported by properly rated jack stands, you can safely perform maintenance tasks such as tire rotation, brake inspection, wheel replacement, or suspension work. Before lowering the vehicle, ensure all tools have been removed from underneath, then lower it slowly and perform a final visual inspection to confirm everything is secure.

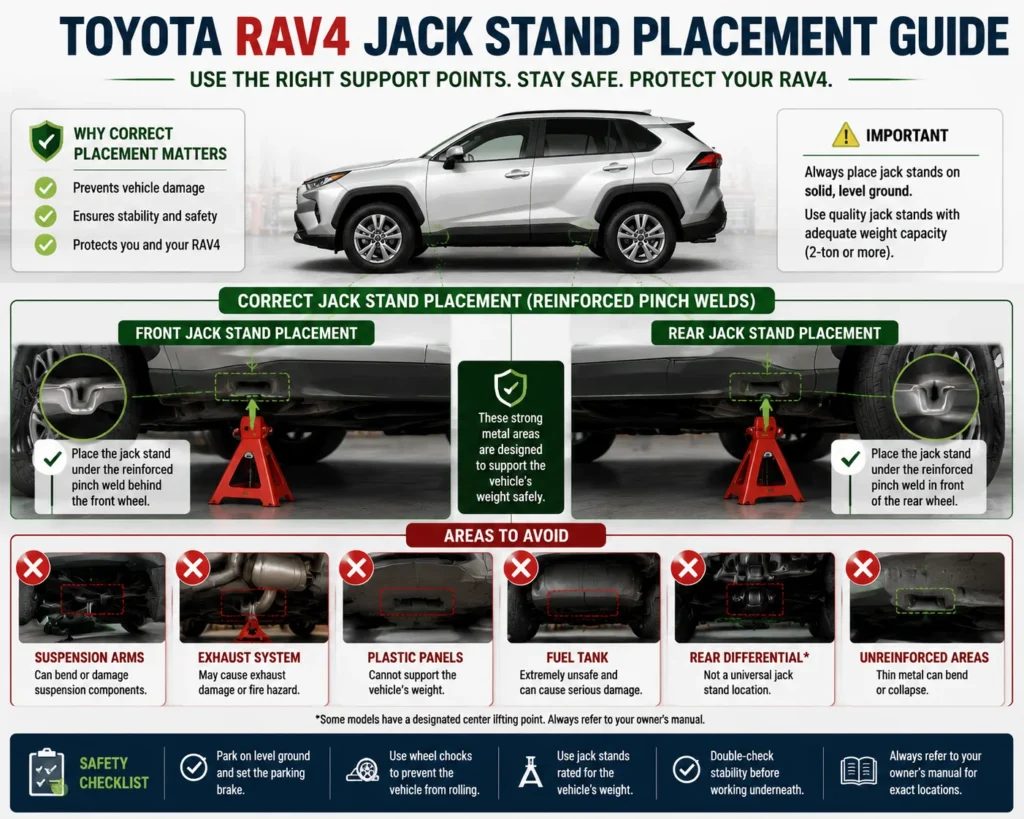

Where to Place Jack Stands
Using the correct jack points to lift your Toyota RAV4 is only half of the process. Equally important is placing the jack stands at the proper support locations before working underneath the vehicle.
In most Toyota RAV4 models, jack stands should be positioned under the reinforced pinch welds or the designated support points specified in the owner’s manual. These areas are engineered to carry the vehicle’s weight without causing damage to the body or chassis.
Avoid placing jack stands under suspension arms, the exhaust system, plastic underbody panels, the fuel tank, or any other unsupported components. Incorrect placement can damage the vehicle and create a serious safety hazard.
Jack Stand Placement Guide
| Jack Stand Location | Recommended? | Notes |
|---|---|---|
| Reinforced pinch welds | ✅ Yes | Factory-recommended support points. |
| Designated support points | ✅ Yes | Use where specified in the owner’s manual. |
| Suspension arms | ❌ No | Can bend or damage suspension components. |
| Exhaust system | ❌ No | May cause exhaust damage. |
| Plastic underbody panels | ❌ No | Cannot support the vehicle’s weight. |
| Fuel tank | ❌ No | Extremely unsafe and may cause serious damage. |
Common Jacking Mistakes to Avoid
Even when using the correct Toyota RAV4 jack points, small mistakes during lifting can lead to vehicle damage or serious safety risks. Avoiding these common errors will help ensure a safer and more successful maintenance experience.
Common Mistakes
| Mistake | Why You Should Avoid It |
|---|---|
| Lifting on an uneven surface | Increases the risk of the jack slipping or the vehicle becoming unstable. |
| Using the wrong jack point | Can bend the pinch weld or damage the underbody. |
| Working without jack stands | A hydraulic jack can fail unexpectedly, creating a serious safety hazard. |
| Exceeding the jack’s weight capacity | May cause the jack to collapse under load. |
| Placing the jack at an angle | Reduces stability and increases the chance of slipping. |
| Ignoring the owner’s manual | Model-year lifting points may vary and should always be verified. |
Following these best practices not only protects your Toyota RAV4 from unnecessary damage but also helps keep you safe while performing routine maintenance. Taking a few extra minutes to lift the vehicle correctly is always better than risking costly repairs or personal injury.
Jack Point Locations by RAV4 Generation
Although the basic lifting principles remain the same, the exact Toyota RAV4 jack points may vary slightly between model generations. Always verify the lifting locations in your owner’s manual before using a floor jack or jack stands.
Toyota RAV4 Jack Point Comparison
| RAV4 Generation | Model Years | Front Jack Points | Rear Jack Points | Center Lifting Point |
|---|---|---|---|---|
| 2nd Generation (XA20) | 2001–2005 | Reinforced pinch welds | Reinforced pinch welds | Refer to owner’s manual |
| 3rd Generation (XA30) | 2006–2012 | Reinforced pinch welds | Reinforced pinch welds | Varies by model |
| 4th Generation (XA40) | 2013–2018 | Reinforced pinch welds | Reinforced pinch welds | Varies by model |
| 5th Generation (XA50) | 2019–Present | Reinforced pinch welds | Reinforced pinch welds | Refer to owner’s manual |
Regardless of the generation you own, avoid lifting the vehicle from suspension components, plastic underbody panels, or other unsupported areas. Using the factory-recommended lifting points helps protect the vehicle’s frame and ensures safe maintenance.
Recommended Jack and Jack Stand Capacity
Choosing the right lifting equipment is just as important as using the correct Toyota RAV4 jack points. A properly rated floor jack and jack stands provide better stability and help reduce the risk of accidents during maintenance.
Recommended Equipment
| Equipment | Minimum Capacity | Recommended Capacity | Why It Matters |
|---|---|---|---|
| Hydraulic Floor Jack | 2 Tons | 3 Tons | Provides stable and controlled lifting. |
| Jack Stands (Pair) | 2 Tons | 3 Tons | Safely supports the vehicle during maintenance. |
| Wheel Chocks | N/A | Heavy-duty rubber or metal | Helps prevent the vehicle from rolling. |
| Jack Pad Adapter | Optional | Rubber pinch weld adapter | Protects the pinch weld from damage while lifting. |
Using quality lifting equipment in good condition is essential for safe vehicle maintenance. Before every use, inspect the floor jack and jack stands for signs of wear, damage, hydraulic leaks, or corrosion. If any equipment appears damaged or unstable, replace it before lifting your Toyota RAV4.
Toyota RAV4 Jack Points Safety Tips
Before performing any maintenance work, always identify the correct Toyota RAV4 jack points to avoid damaging the vehicle. The wrong lifting location can bend the pinch welds, damage the underbody, or create an unsafe situation while raising the vehicle.
Using the proper Toyota RAV4 jack points with a quality floor jack and jack stands provides better stability during repairs. Whether you own an older model or the latest generation, checking the recommended lifting locations ensures that the Toyota RAV4 jack points are used correctly.
Many owners make the mistake of placing the jack under weak components instead of the designated areas. Following the correct Toyota RAV4 jack points procedure helps prevent expensive repairs and keeps routine maintenance safer.
Conclusion
Knowing the correct Toyota RAV4 jack points is essential for anyone who performs basic vehicle maintenance at home. Using the factory-recommended lifting points helps protect the underbody, prevents unnecessary damage, and provides a safer lifting experience.
Before lifting your RAV4, always park on a level surface, use properly rated lifting equipment, and support the vehicle with quality jack stands. Taking these simple precautions can significantly reduce the risk of accidents while making routine maintenance easier and more efficient.
Whether you’re changing a tire, rotating wheels, or inspecting the brakes, following the correct lifting procedure will help keep both you and your Toyota RAV4 safe. When in doubt, consult your owner’s manual to verify the recommended lifting points for your specific model year.Always check your owner’s manual before lifting your vehicle because Toyota RAV4 jack points may vary slightly depending on the model year and drivetrain. Following the recommended lifting locations, using quality jack stands, and avoiding unsafe areas will make every maintenance task safer and easier.
Using the correct Toyota RAV4 jack points is essential for safe vehicle maintenance and preventing unnecessary damage. Whether you are changing a tire, inspecting the brakes, or performing other repairs, knowing the proper Toyota RAV4 jack points helps protect the vehicle frame and keeps the lifting process secure.
Frequently Asked Questions
Where are the jack points on a Toyota RAV4?
The primary jack points are located along the reinforced pinch welds behind the front wheels and in front of the rear wheels. Some models also have designated center lifting points for use with a hydraulic floor jack.
Can I use a hydraulic floor jack on a Toyota RAV4?
Yes. A properly rated hydraulic floor jack can be used when positioned at the correct factory-recommended lifting point.
Where should I place jack stands on a Toyota RAV4?
Jack stands should be placed under the reinforced pinch welds or other designated support points specified in the owner’s manual.
Can I jack up the Toyota RAV4 from the rear differential?
Not all Toyota RAV4 models use the same rear lifting location. Always verify the approved center lifting point in your owner’s manual before lifting the rear of the vehicle.
What size floor jack is recommended for a Toyota RAV4?
A minimum 2-ton hydraulic floor jack is generally suitable, while a 3-ton floor jack provides additional stability and ease of use.
Is it safe to work under a vehicle supported only by a jack?
No. Never work underneath a vehicle that is supported only by a hydraulic or scissor jack. Always use properly rated jack stands.
Can incorrect jack placement damage my Toyota RAV4?
Yes. Lifting from an incorrect location can bend the pinch welds, damage the underbody, or affect suspension components.
Do Toyota RAV4 jack points vary by model year?
Yes. While reinforced pinch welds are common across most generations, some center lifting points differ depending on the model year and drivetrain. Always confirm the correct locations in your owner’s manual.
Where are the Toyota RAV4 jack points located?
The Toyota RAV4 jack points are usually located along the reinforced pinch weld areas near the front and rear wheels. These factory-designed lifting locations provide strong support when using a floor jack or the vehicle’s emergency jack.
For different model years, the exact Toyota RAV4 jack points location can vary, so owners should always confirm the correct lifting points in the owner’s manual.Can I use any area under my RAV4 as a jack point?
No, you should only use the recommended Toyota RAV4 jack points because other areas may not safely support the vehicle’s weight. Incorrect lifting can damage the underbody, suspension parts, or frame.
Using the proper Toyota RAV4 jack points along with correctly rated jack stands reduces the risk of accidents and helps keep your vehicle safe during maintenance.
